Double-head chamfering machine
Product brief introduction：

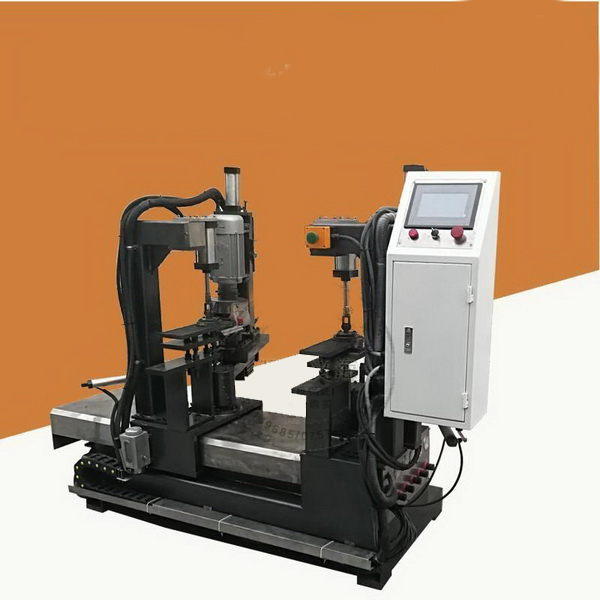

Double-head chamfering machine
DJ-1000 CNC double-head chamfering machine is
an excellent equipment improved on the basis of single-head chamfering machine.
According to the numerical control programming, with the pneumatic device can
realize the coarse grinding polishing one complete equipment, R Angle size can be
adjustable from 3~60mm, widely used in the processing of furniture glass.
Technical parameters:
|
Model |
DJ-1000 |
|
Max/Min. Glass width; |
1000; 380mm |
|
Glass Thickness |
3-12mm |
|
Power |
4.5KW |
|
Weight |
1200KGS |
|
External dimension |
1980x1000x1600mm |
