Glass loading machine

Product brief introduction:Glass loading machine is suitable for relative specification automatic cutting machine of any brand.

  • Detail
  • Technical feature

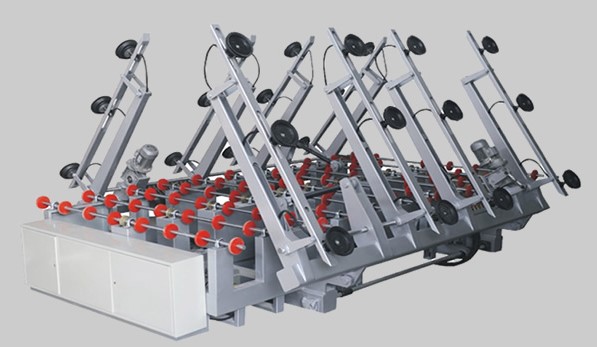

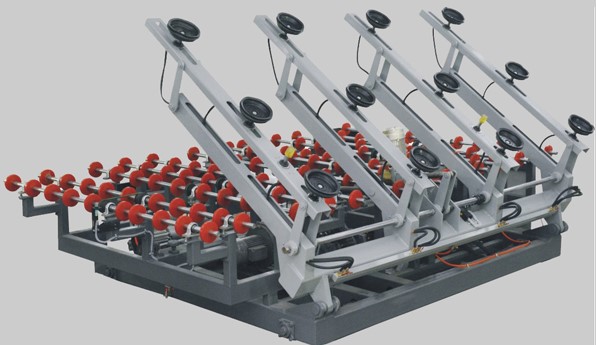

    Glass loading machine

    Production introduction:

    This machine is composed of moving track, sucker rotating arms, conveyor section, hydraulic system, vacuum system and electric control system.

    It separates the glass sheets from vertical into horizontal and convey the single sheet to the glass cutting table according to the signals.

    Main specification and parameters:

    Model

    Max loading size

    Min loading size

    Rotating arms

    Suitable cutting machine

    LM-2520

    2500*2000mm

    1000*800mm

    Single/Double



    Can be suitable for relative specification automatic cutting machine of any brand.

    LM-3725

    3700*2500mm

    1000*800mm

    Single/Double

    LM-4228

    4200*2800mm

    1000*800mm

    Single/Double

    LM-5133

    5100*3300mm

    1000*800mm

    Single/Double

    LM-6133

    6100*3300mm

    1000*800mm

    Single/Double

    Can make more size loading machine according to customer requirement
